Halfback®H20

When insulating & managing moisture is a top priority, we've got you covered.

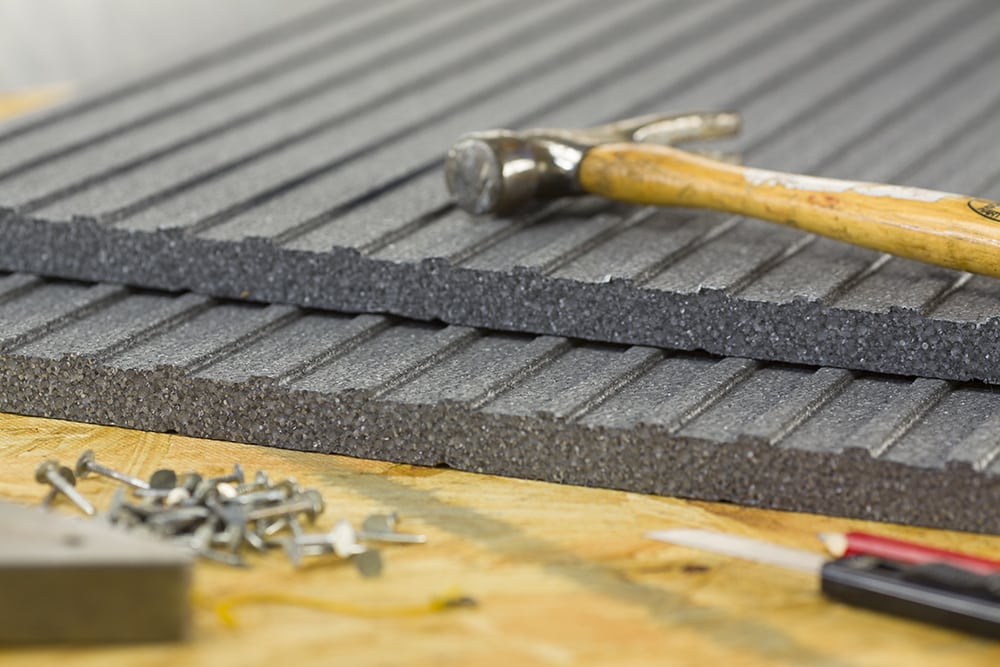

Halfback H20 features built-in drainage grooves to keep the wall dry.

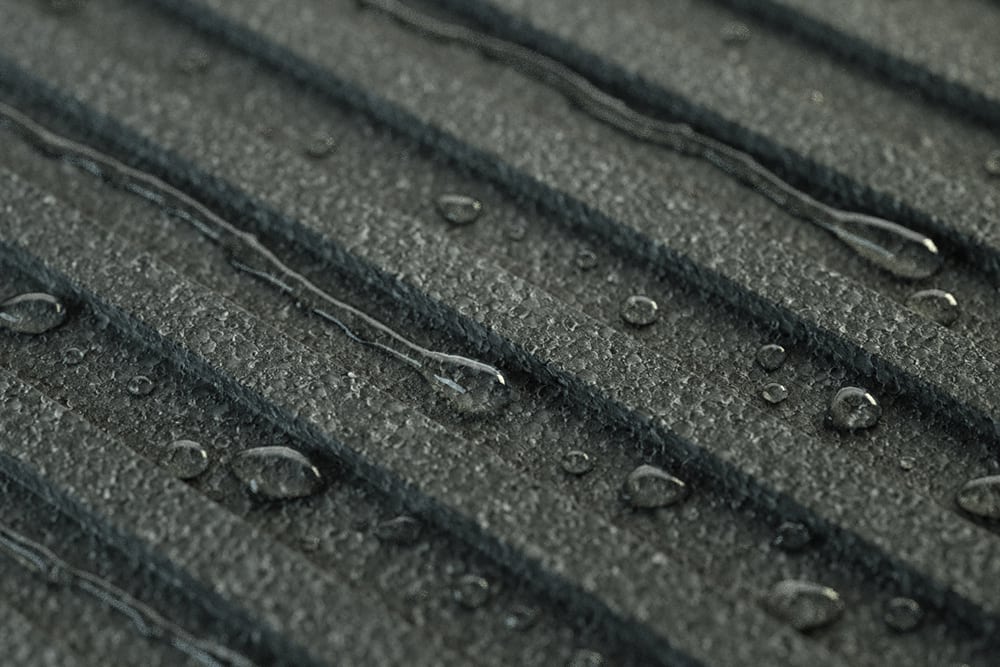

Maximum Moisture Management

HalfbackH20 features built-in moisture management grooves that allow bulk water to efficiently drain down the wall and away from the home.

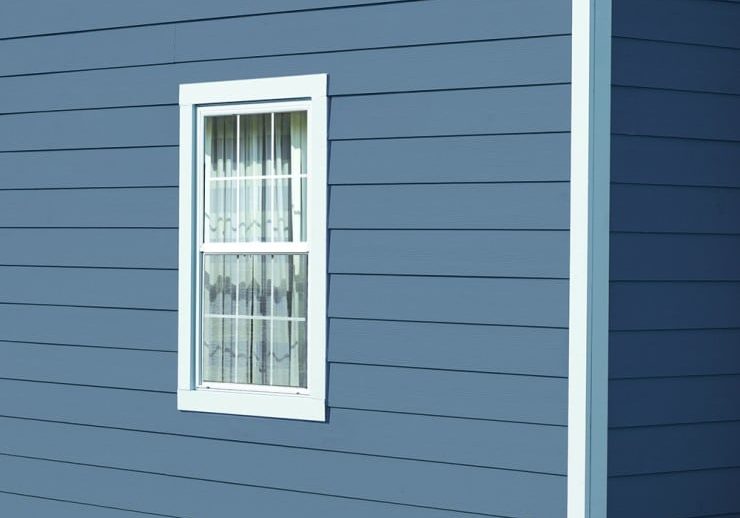

Versatility

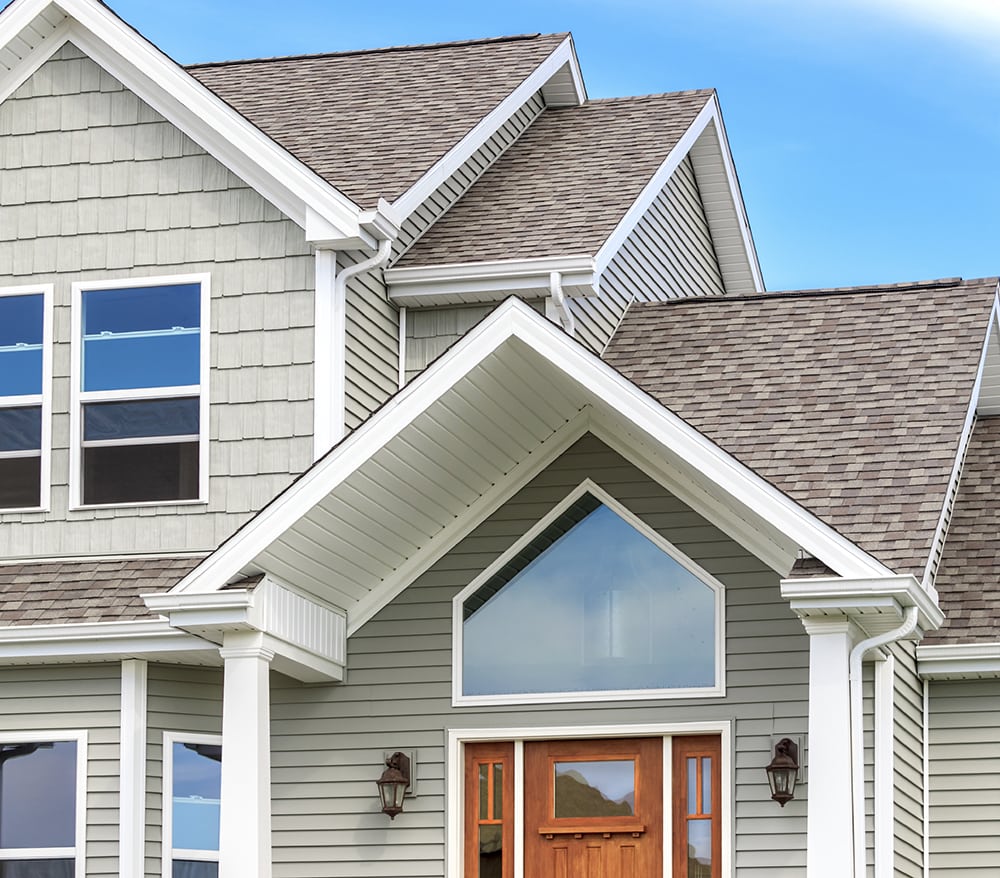

The flat face of HalfbackH20 makes it is versatile enough to be used with any kind of siding, including fiber cement, engineered wood, shakes, scallops, and stone.

Manages Water Vapor

An average household produces 4-6 gallons of water vapor inside daily. HalfbackH20 features a perm rating up to 3.5, allowing moisture to escape the home. This reduces the chance of mold and mildew growth, creating a healthier home and longer lasting siding.

Halfback H20 does more than manage moisture.

Moisture Management

Halfback H20 is made with StayDry Technology®, a proprietary manufacturing process that makes the insulation 3x more breathable than comparable products. With a perm rating of up to 4.6, it helps protect the home from potential moisture damage, letting water vapor generated inside the home escape.

Proven Energy Efficiency

Continuous Insulation powered by GPS (Graphite Polystyrene) Foam. Holds its R-Value: After extreme environmental testing, held its R-value in conditions that involved both constant thermal gradient and cycling between large temperature and humidity variations.

Termite Resistant

Protected from insect degradation with a specially formulated insect inhibitor that’s safe for humans and pets.

Stability and Durability

Halfback H20 is adaptable in size, thickness, shape and density, providing maximum flexibility and durability.

Fire Performance

Halfback H20 is formulated with specially modified materials that are manufactured with a flame retardant (ASTM E84/UL 723).

Interested in Even MORE Energy Savings?

Take energy savings to the next level with GPS

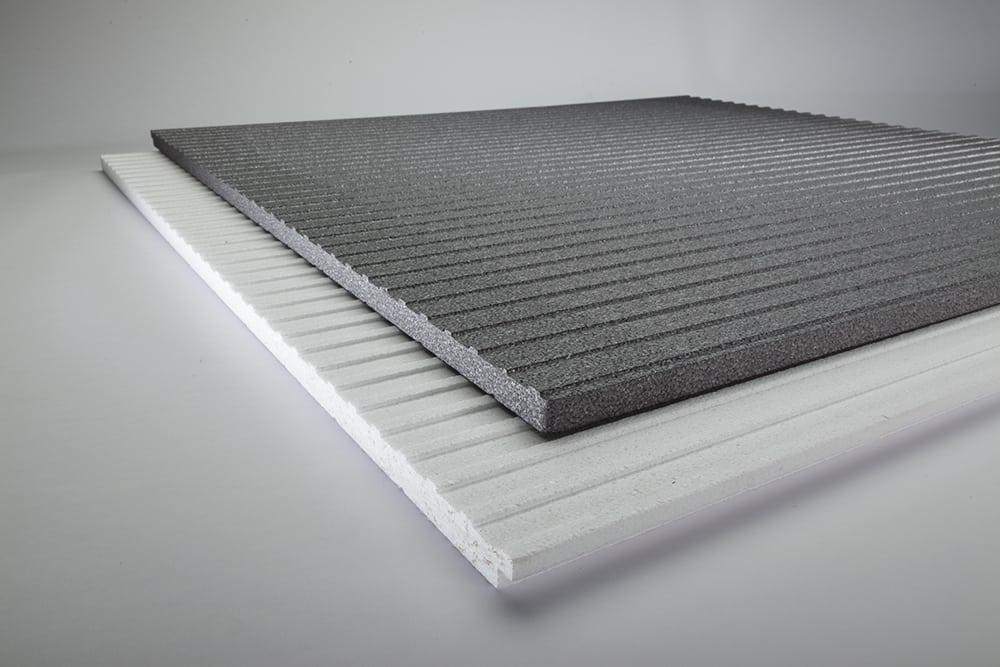

Halfback H2O siding insulation is available in both white expanded polystyrene (EPS) and graphite polystyrene (GPS). GPS provides up to 20% more insulating value than standard EPS, allowing for more energy savings with the same amount of material.

Specifications & Downloads

Specifications

Dimensions = 4'x4' and 4'x8'
EPS Thicknesses = 3/4" (R-2.3) and 1" (R-3.3)
GPS Thicknesses = 3/4" (R-3.0), 1" (R-4.0) and 1-1/4" (R-5.0)
Density = Minimum .90 lb./ft3
Water Vapor Permeance = Up to 5.0
Compressive Strength = Minimum 10 PSI
Flexural Strength = Minimum 25 PSI

Downloads

HalfbackH20 Original Brochure (short) (pdf 0.91 MB)

HalfbackH2O Original Brochure (full) (pdf 1.76 MB)

HalfbackH20 Original Data Sheet (pdf 0.1 MB)

HalfbackH20 Premium Brochure (short) (pdf 1.16 MB)

HalfbackH20 Premium Brochure (full) (pdf 1.95 MB)

HalfbackH20 Premium Data Sheet (pdf 0.12 MB)

HalfbackH2O Original Brochure (short) (pdf 0.91 MB)

Stories About HalfbackH20

HalfbackH20: Insulation for Maximum Moisture Management

June 11, 2014

HalfbackH20 is a general siding insulation product that not only insulates your home, but also provides an extreme level of?protection against bulk water that may accumulate on the sheathing surface. How It WorksHalfbackH20 is a closed cell, rigid siding insulation with drainage grooves for enhanced moisture management. The grooves are built into the back […]

Mold Remediation Remodel Uses HalfbackH20

May 1, 2013

HalfbackH20 Premium Siding Insulation Installed Under Fiber Cement During Mold Remediation Remodel ?We believe that HalfbackH20 Premium is the perfect product for us to add insulation to these remodeled homes while resting easy knowing it will help effectively manage moisture from day one.” -Joe Yurick, General Manager Atlantic Remediation and Restoration Contractors (ARRC) in Pennsylvania […]
